Wire rope hoists

Type DA - low headroom crab unit

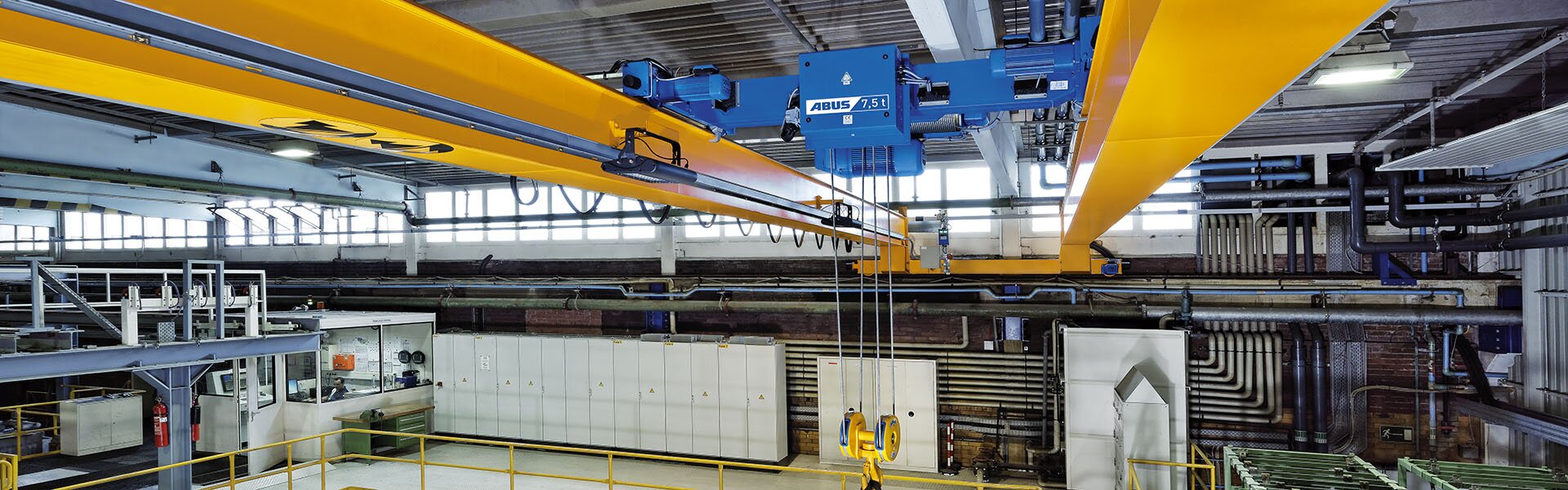

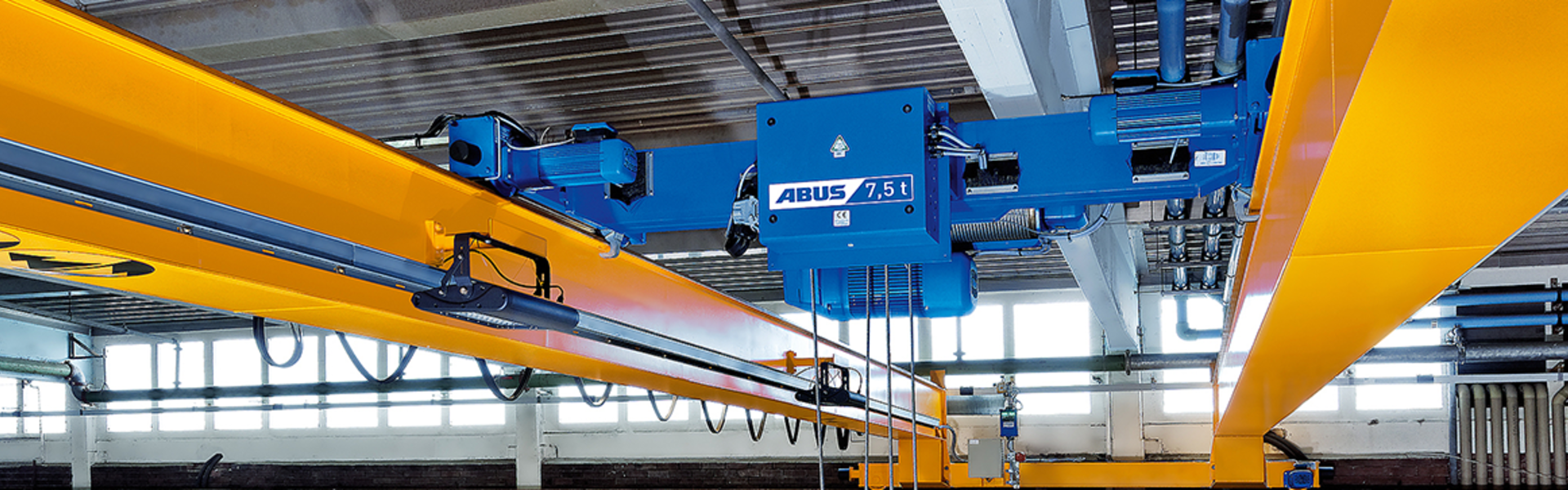

ABUS double rail trolley type DA on ABUS double girder overhead travelling crane

At a glance

  • SWL range 1 - 40 t.
  • Minimum overall headroom dimensions.
  • May be used where very little space is available above the crane.

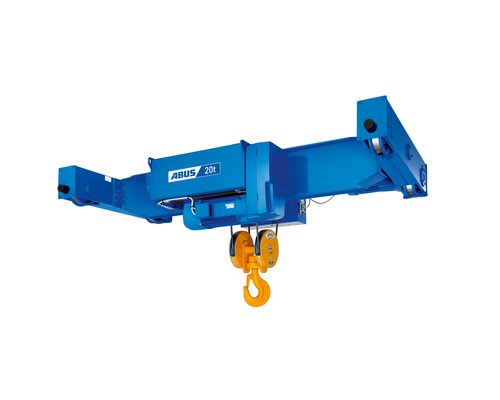

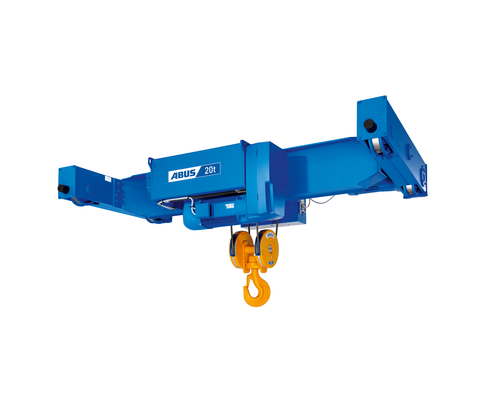

Figure ABUS double rail trolley type DA

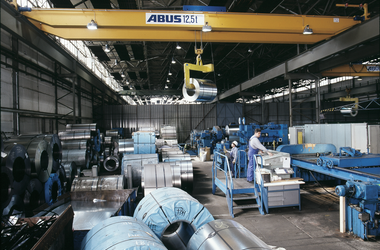

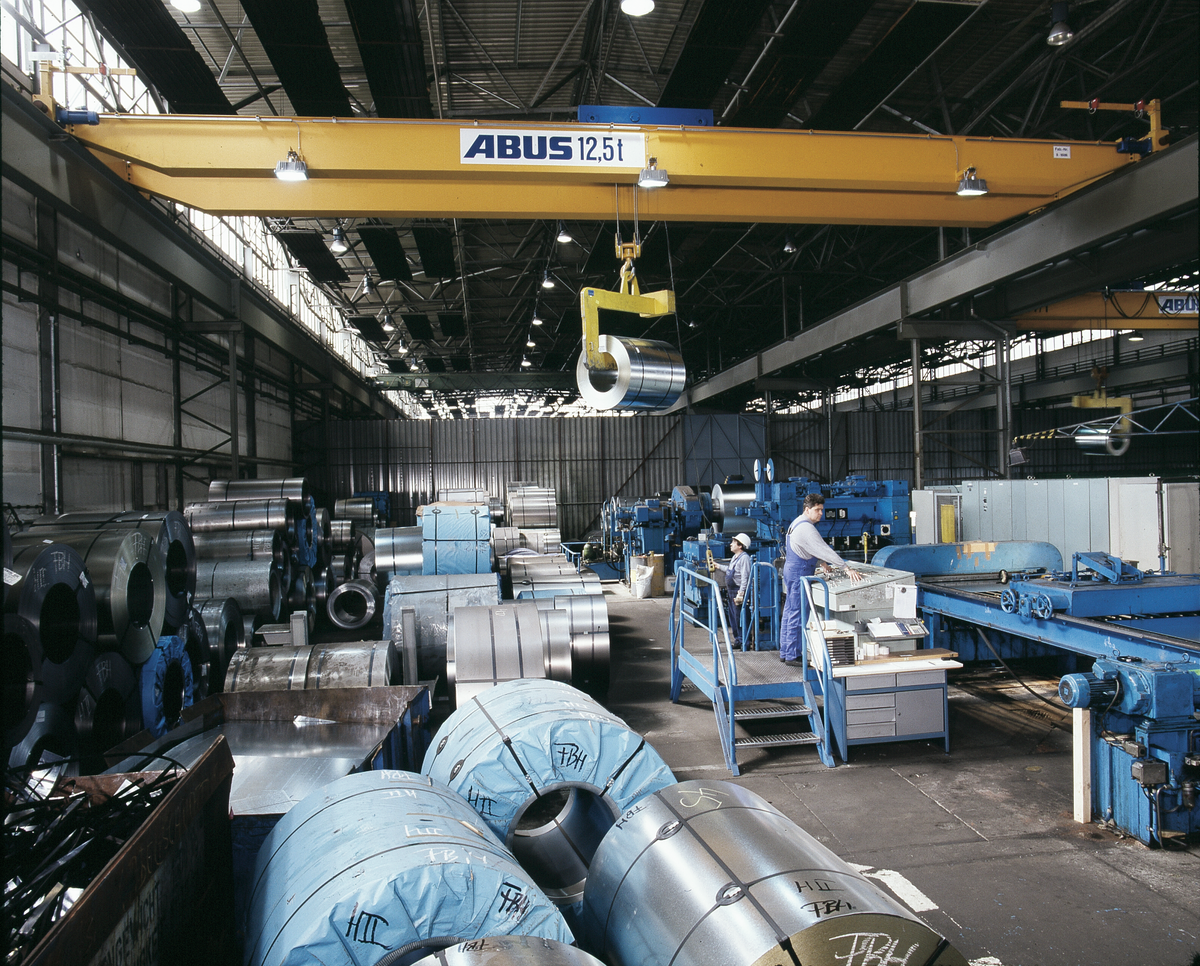

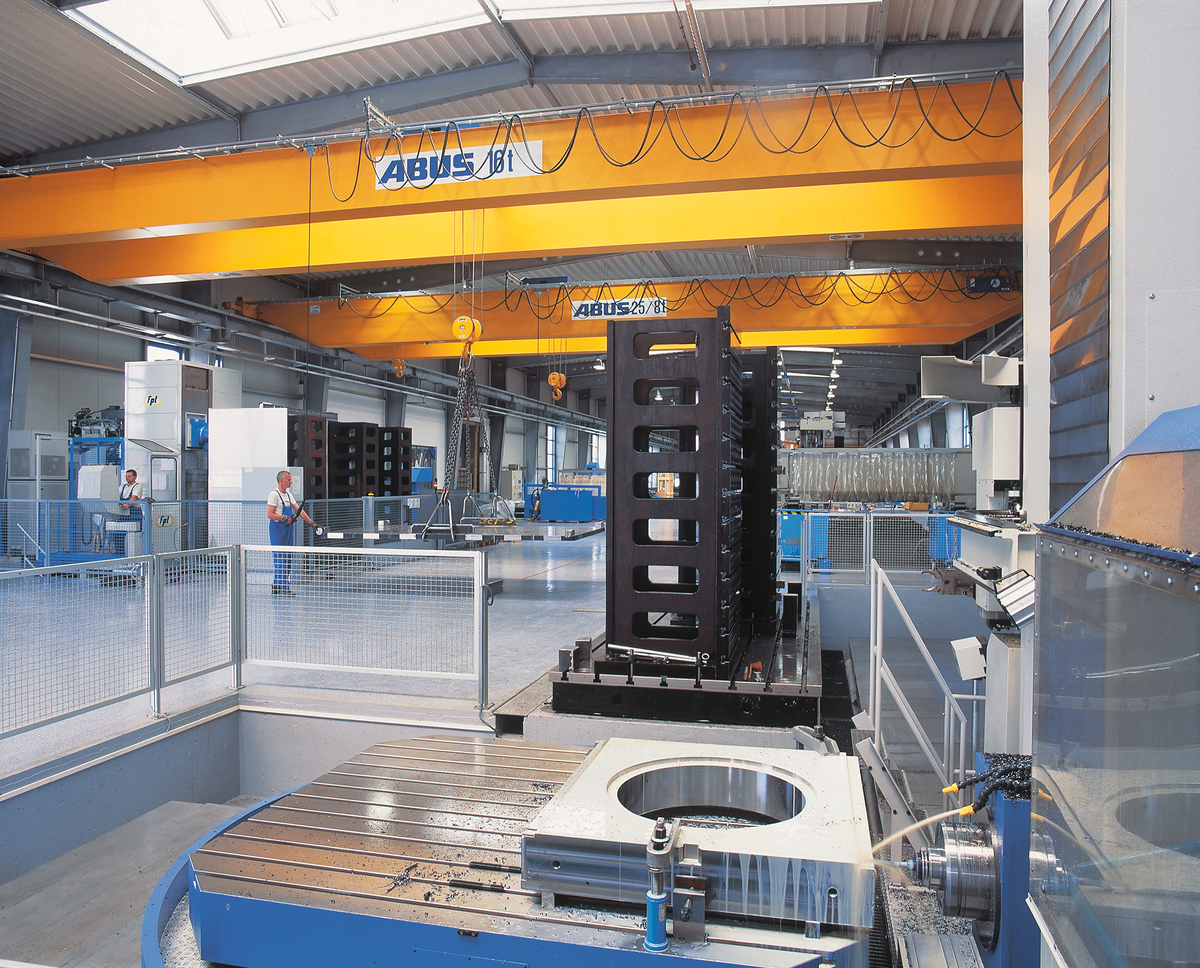

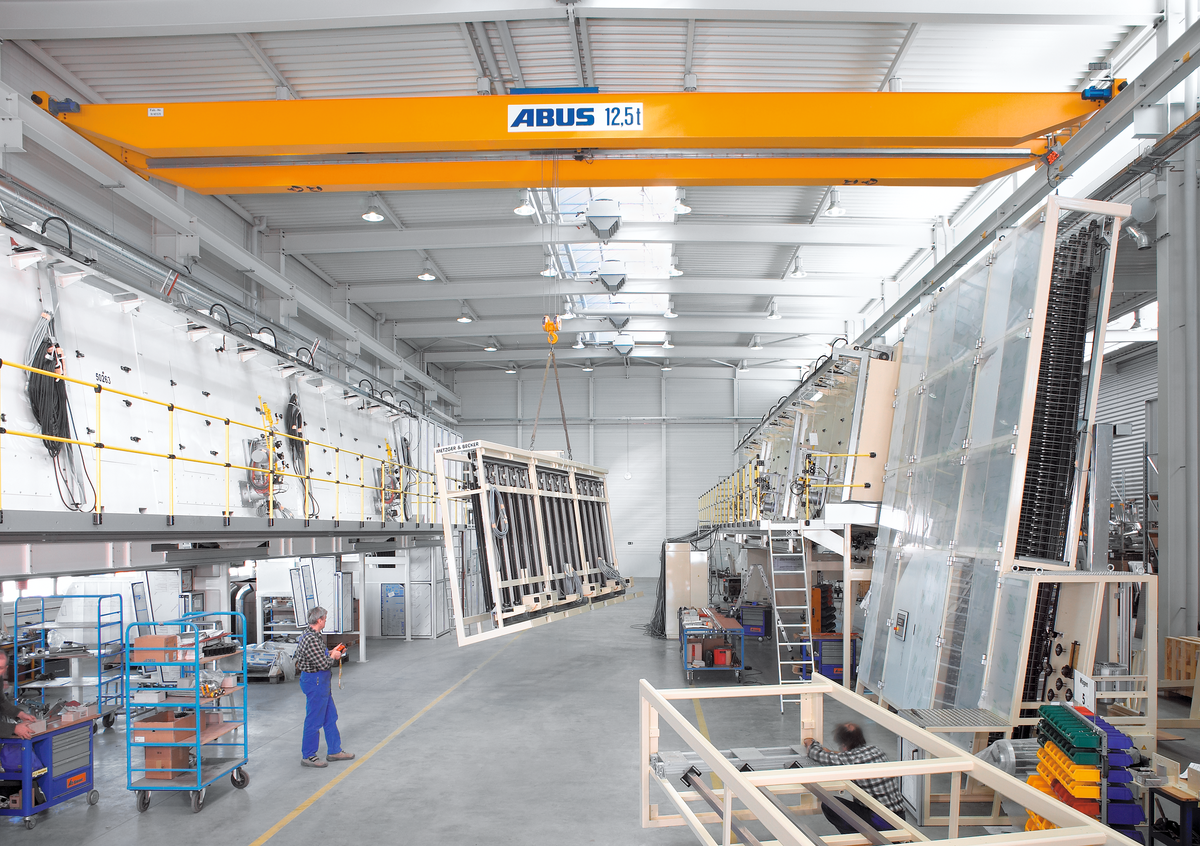

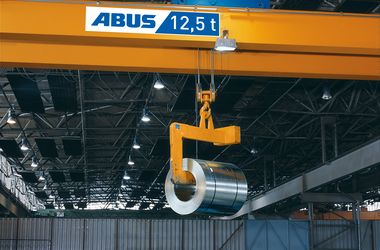

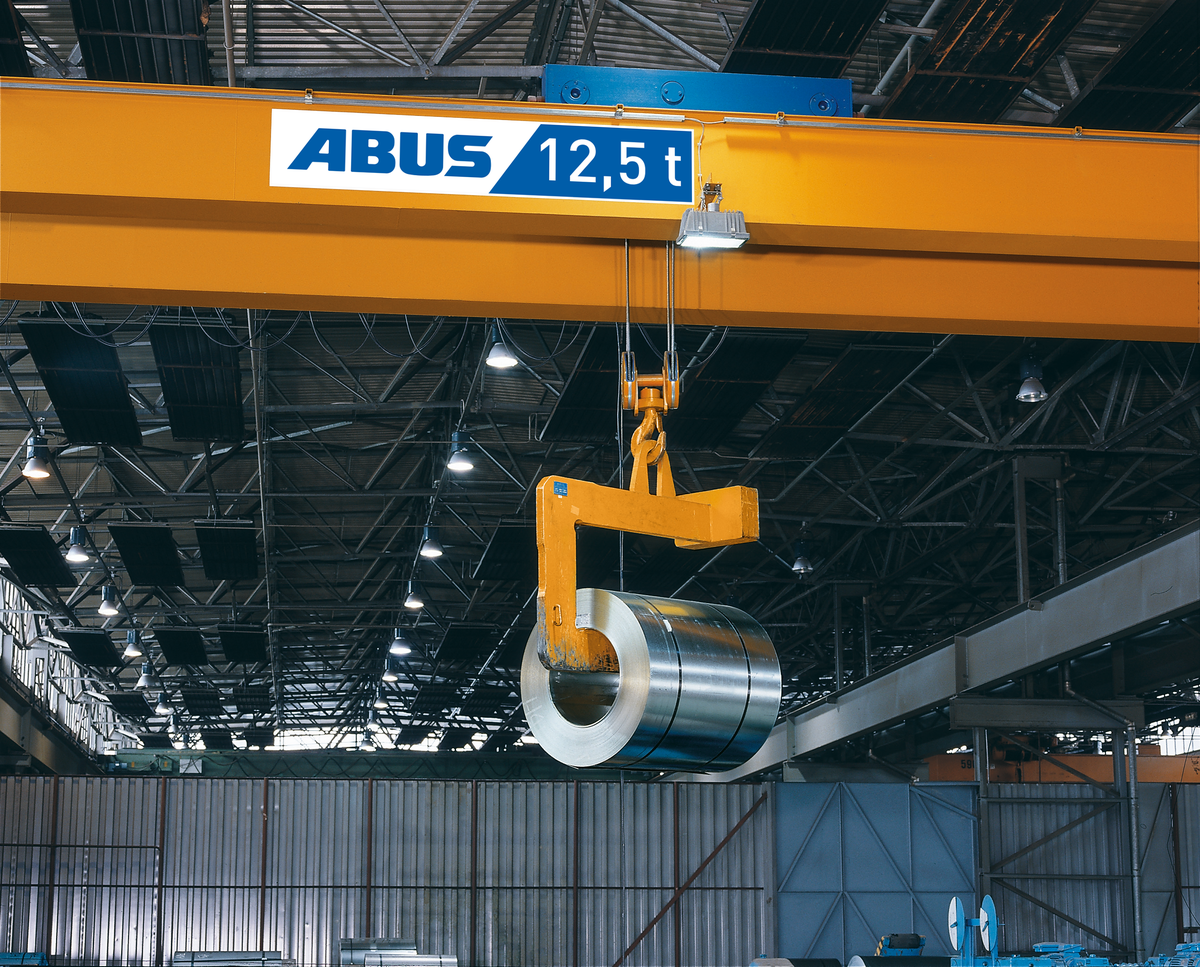

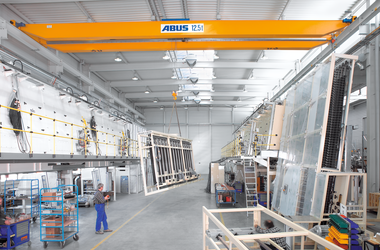

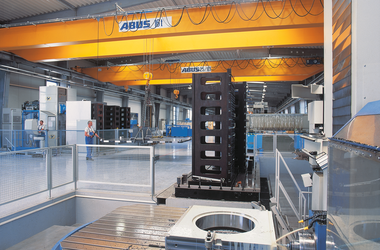

ABUS double rail trolley type DA on ABUS double girder overhead travelling crane at Anchor Lamina in Chemnitz, Germany Close-ups of ABUS double rail trolley type DA on ABUS double girder overhead travelling crane at Eko in Eisenhüttenstadt, Germany ABUS double rail trolley type DA on ABUS double girder overhead travelling crane in the company Metzger Becker ABUS double rail trolley type DA on ABUS double girder overhead travelling crane in the company Eko in Eisenhüttenstadt

TYPE DA - LOW HEADROOM CRAB UNIT

In contrast to type D, the supporting member with the hoist between the end carriages is equipped with articulated joints. The hoist headroom is therefore reduced to a minimum. This is the option to use where very little space is available above the crane, as an alternative to type DQA, also a low headroom option.

RELATED PRODCUTS

Figure ABUS monorail trolley type E
Type E – monorail hoist
16 t
Figure ABUS bottom flange trolley type U
Type U – monorail hoist with twin trolleys
25 t
Seitenlaufkatze Bauart S
Type S – side-mounted hoist
10 t
Figure ABUS double rail trolley type D
Type D – standard crab unit
63 t
Figure ABUS double rail trolley type DQA
Type DQA – ultra low headroom crab unit
40 t
Figure ABUS double-rail trolley type Z with twin hoisting gear
Type Z – twin barrel crab unit
120 t

Downloads

ABUS Electric wire rope hoists
ABUS Electric wire rope hoists
Download PDF (4.58 MB)
ABUS hook block scale
ABUS hook block scale
Download PDF (349.03 KB)
This product in action

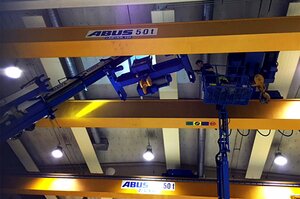

Assembly of an auxiliary hoist on double girder travelling crane in Brunvoll company
