Type U – monorail hoist with twin trolleys
At a glance
- SWL range 6.3 t - 25 t.
- Cross travel trolley with direct drive.
- No exposed reduction gearing.
- Load is distributed over 8 wheels.
Then request now for an offer!
TYPE U – MONORAIL HOIST WITH TWIN TROLLEYS

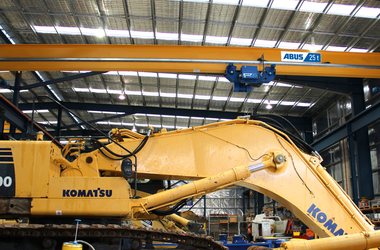

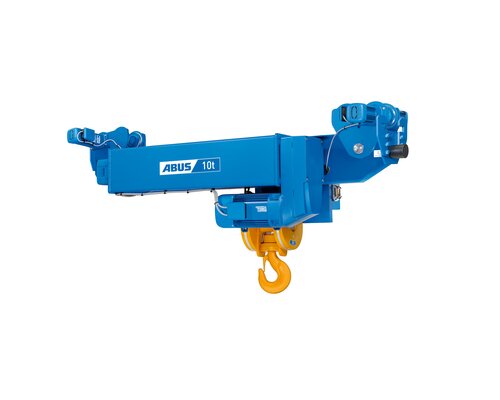

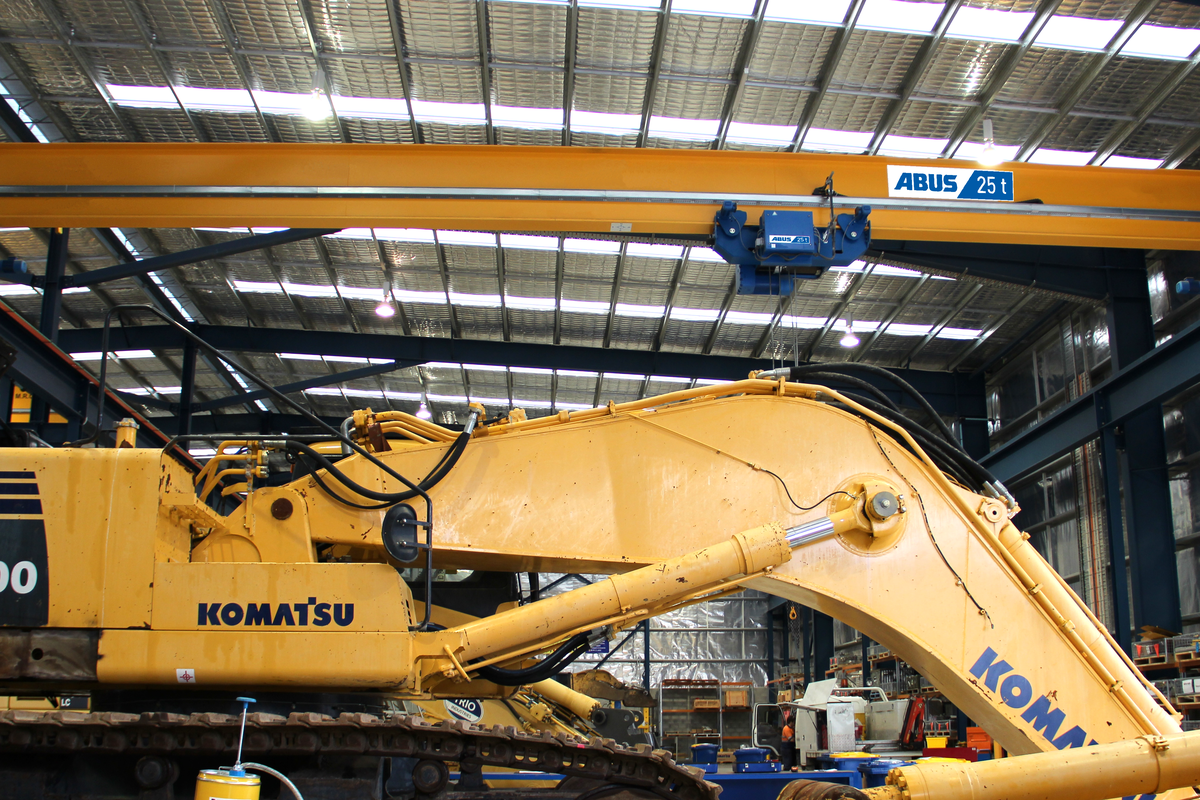

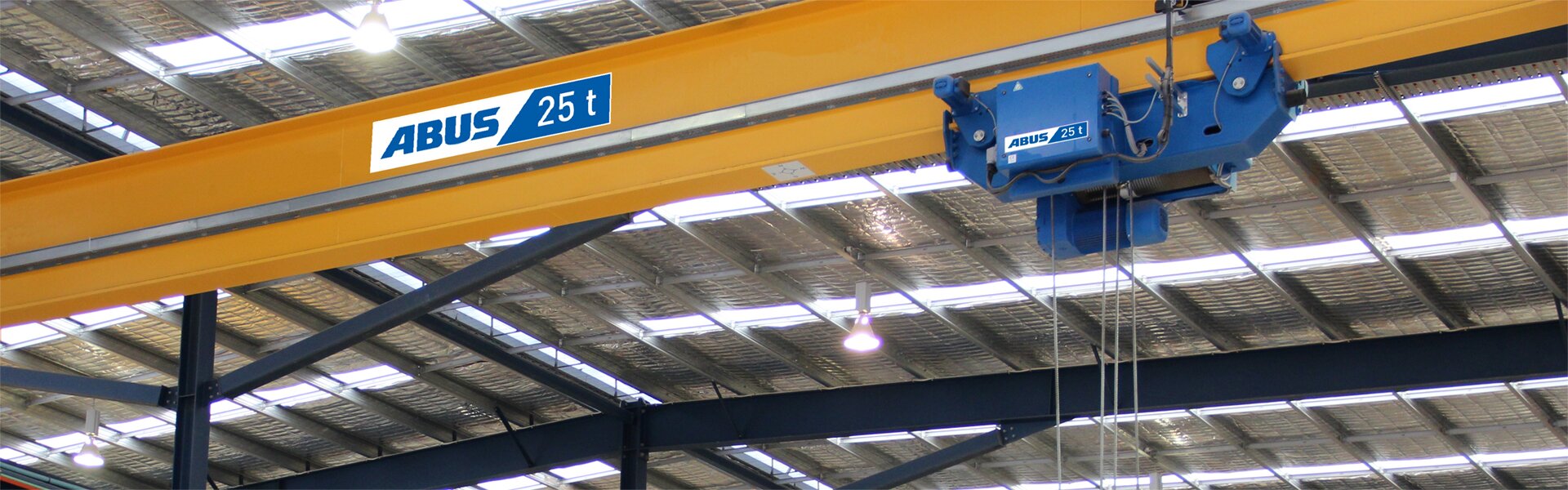

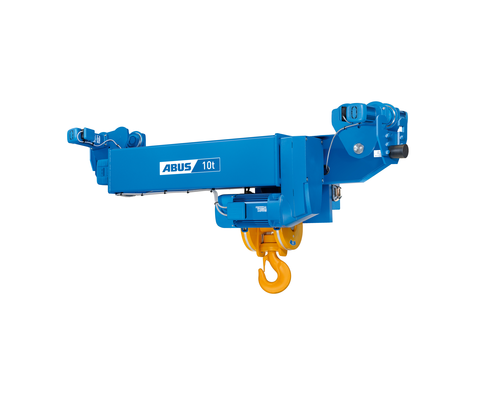

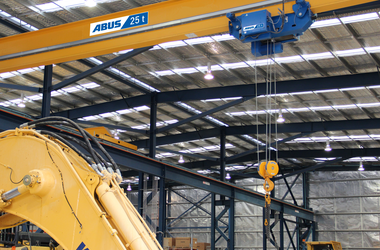

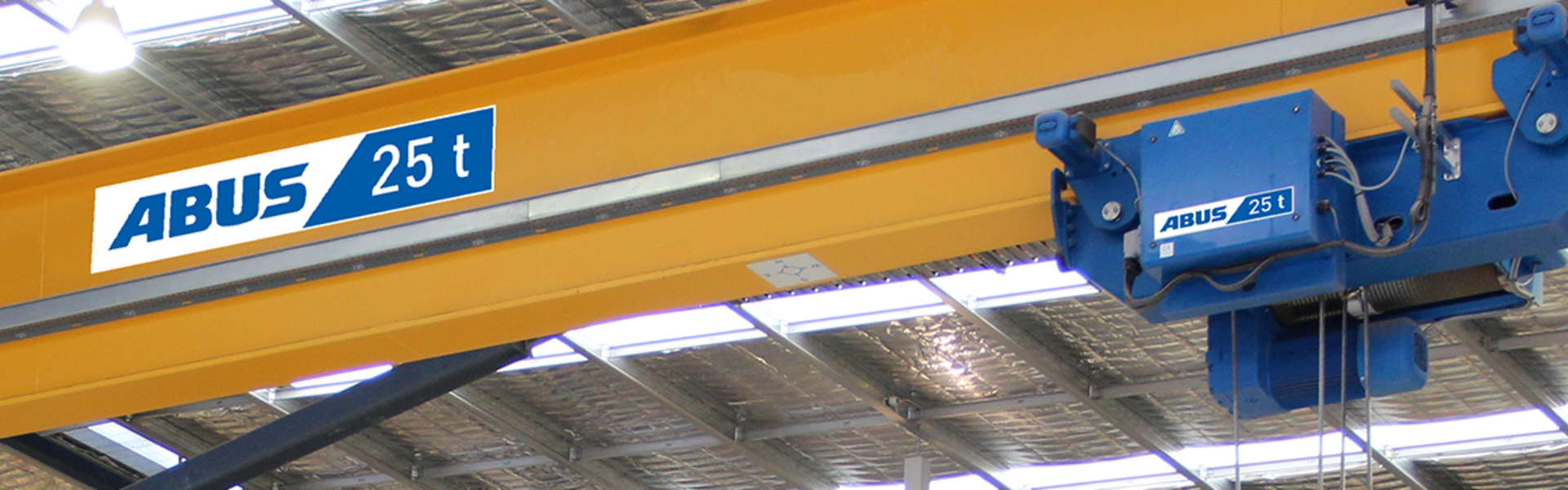

The monorail hoist with twin trolleys type U is used for high load capacities and long hook paths. The SWL range extends between 6.3 t and 25 t. The cross travel trolleys feature direct drives without exposed reduction gearing. This lower flange trolley is fitted with 8 wheels for better load distribution. Thus ordinary rolled section beams can be used for monorail track applications. Cranes with higher load capacities yet smaller spans can be designed as single-girder cranes when using the hoist type S. Advantages as to the total investment can be achieved in comparison to the double-girder crane.
ABUS GM WIRE ROPE HOISTS
FOR SINGLE-GIRDER CRANES

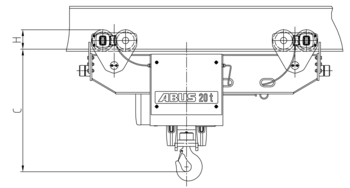

| Model | Reeving | Load cap. (t) | Hook path (m) | C (mm) | H (mm) |
|---|---|---|---|---|---|
| GM 5000 | 4/1 | 20,0 | 6 / 10 / 15 / 18,5 | 1132 | 180 |
| GM 6000 | 2/1 | 12,5 | 12 / 20 / 30 / 37 | 1256 | 180 |
| 4/1 | 25,0 | 6 / 10 / 15 / 18,5 | 1241 | 180 | |
| GM 7000 | 2/1 | 20,0 | 16 / 30 / 45 / - | 1615 | 180 |
